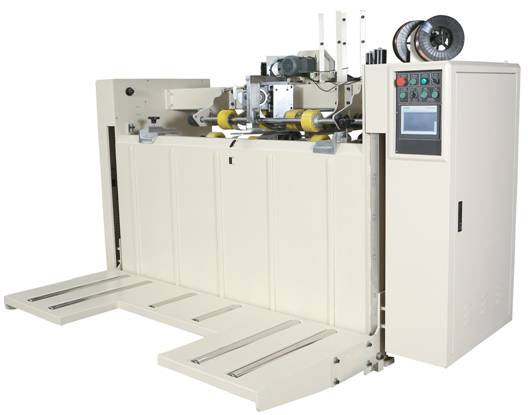

中文Semi-Auto Stitcher ST-2800
Model |
ST-2800 |

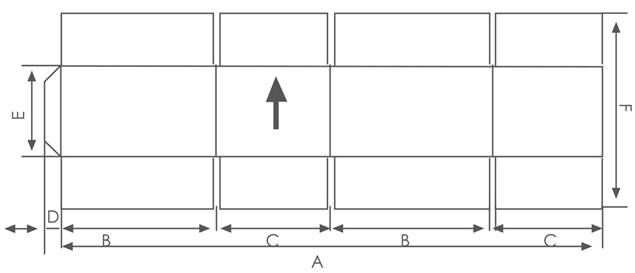

Max sheet width (B+C) x2 |
2800mm |
Min sheet width (B+C) x2 |
606mm |
Max length (F) |
1515mm |
Min length (F) |
300mm |
Side mark (C) |
125-500mm |
Stitching flap (D) |
30-50mm |
Paperboard thickness |
3-10mm |
Machine speed |
500 stitches/min |
Stitching distance |
20-120mm |
Number of stitching |
2-99 stitches |
Stitching wire |
Width: 1.95 (1.8)mm (+/- 0.05mm), thickness: 0.75mm (+/- 0.03mm) |
Stitching forming |
① // // // ② / / / ③ // / // |
Height of feeder |
900mm |
Total power |
4.5kw |
Voltage |
380V, 50HZ, 3phase |
Weight |
2000kg |
Machine dimension |
2850x2700x1900mm |

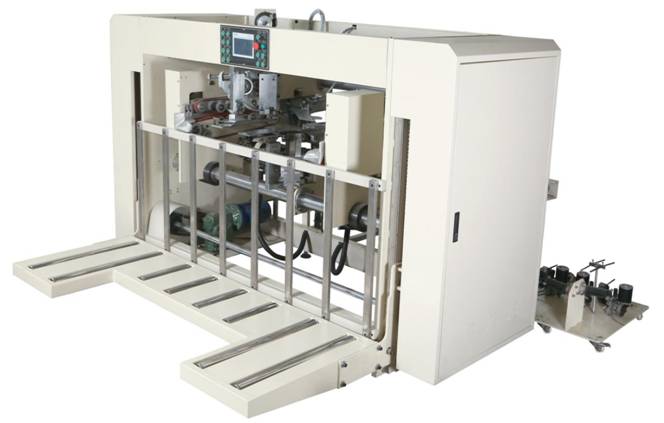

Double Piece Box Stitcher DS-1600
Model |
DS-1600 |

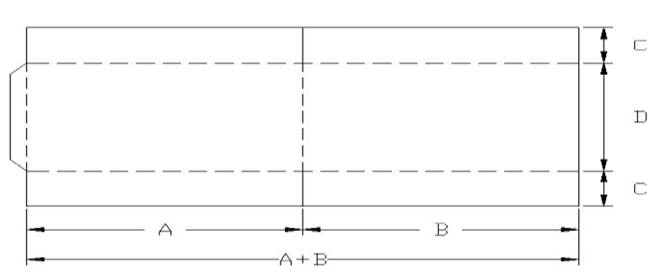

Max size (A+B) x 2 |
3200mm |
Min size (A+B) x 2 |
1060mm |
Max length (A) |
1450mm |
Min length (A) |
350mm |
Max width (B) |
800mm |
Min width (B) |
130mm |
Min height (C+D+C) |
380mm |
Max machine speed |
600 stitches/min |
Stitching distance |
30-120mm |
Stitching quantity |
2-99 stitches |
Stitching wire |
Width: 1.95mm (+/- 0.05mm), thickness: 0.75mm (+/- 0.03mm) |
Stitching forming |
① // // // ② / / / ③ // / // |
Material |
3ply and 5ply corrugated board |
Total power |
8KW |
Voltage supply |
380V, 50HZ, 3phase, 5 lines |
Machine weight |
2900kg |
Machine dimension |
3500x3200x2000mm |
