Product

Semi Auto Corrugated Carton Box Stitcher

Semi auto corrugated carton box stitcher, corrugated board box stitching machine, with touch screen operation. The stitching distance can be 30-120mm. Stitching speed is 500 stitches/minute. Automatic alarm without nail wire and nail wire twining.



Model

ST-2800

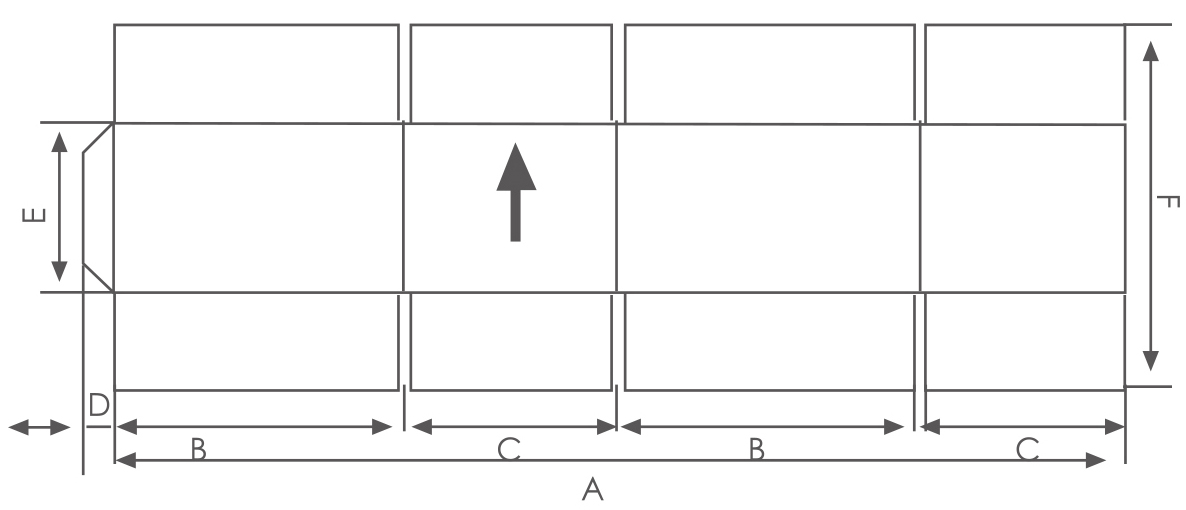

Max sheet width (B+C) x2

2800mm

Min sheet width (B+C) x2

606mm

Max length (F)

1515mm

Min length (F)

300mm

Side mark (C)

125-500mm

Stitching flap (D)

30-50mm

Paperboard thickness

3-10mm

Machine speed

500 stitches/min

Stitching distance

20-120mm

Number of stitching

2-99 stitches

Height of feeder

900mm

Total power

4.5kw

Voltage

380V, 50HZ, 3phase

Weight

2000kg

Machine dimension

2850x2700x1900mm



Two Piece Corrugated Box Stitcher

Two piece corrugated box stitcher, two piece corrugated board box stitching machine, double head carton box stitching machine with touch screen operation. The stitching distance can be 30-120mm. Stitching speed is 450 stitches/minute. Automatic alarm without nail wire and nail wire twining.



Model

DS-2000

DS-2400

DS-3000

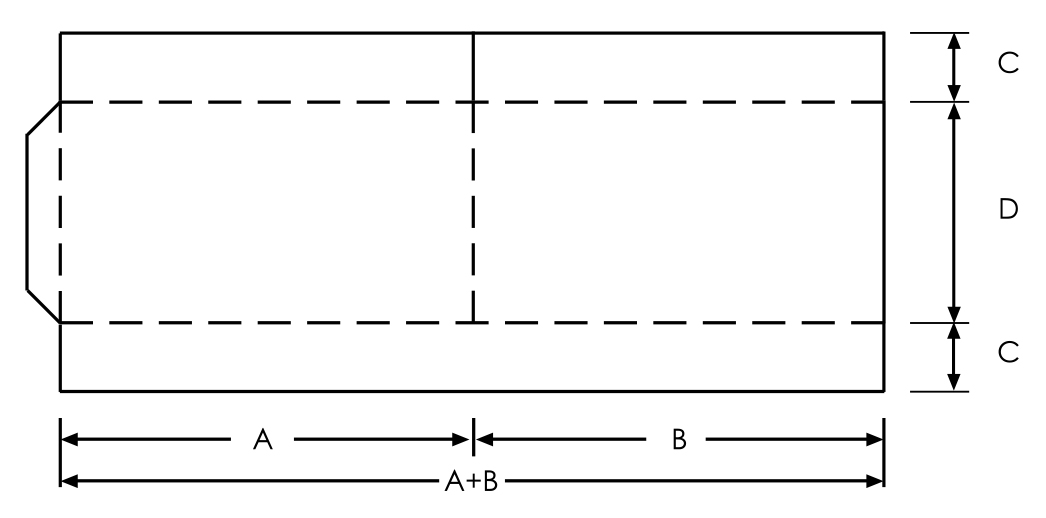

Max size (A+B) x 2

4000mm

4800mm

6000mm

Min size (A+B) x 2

1060mm

1060mm

1060mm

Max length (A)

1850mm

2250mm

2850mm

Min length (A)

350mm

350mm

350mm

Max width (B)

1000mm

1200mm

1500mm

Min width (B)

130mm

130mm

150mm

Min height (C+D+C)

400mm

400mm

400mm

Max machine speed

450 stitches/min

450 stitches/min

450 stitches/min

Stitching distance

30-120mm

30-120mm

30-120mm

Stitching quantity

2-50 stitches

2-50 stitches

2-50 stitches

Material

Corrugated board

Corrugated board

Corrugated board

Total power

10KW

10KW

12KW

Voltage supply

380V, 50HZ, 3phase

380V, 50HZ, 3phase

380V, 50HZ, 3phase

Machine weight

4000kg

5000kg

5500kg

Machine dimension

6000*3600*2000mm

6000*4000*2000mm

6000*4600*2000mm
